Location: USA, MARYLAND

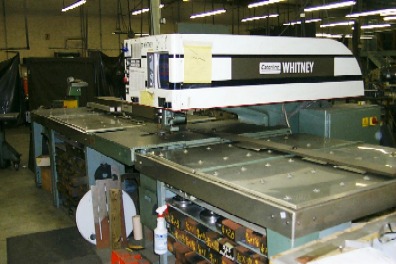

Whitney CNC Punch(#3255).
WHITNEY HYDRAULIC CNC SINGLE END FABRICATOR 30 TON MODEL 2330 SERIES 2000 SN 635-525-42992 NEW 12/98 PUNCHING FORCE 30 TONS THROUGH THE FULL STROKE MATERIAL THICKNESS 1/2” MS PUNCH THROAT 36” POSITION ACCURACY +/-.005” PUNCHING STROKE, NORMAL 1/2” STROKE ADJUSTMENT 3/8” to 2” MAX POSITION DIMENSION 120” X , 30” Y FLOOR SPACE 171” X 85” FB WEIGHT 8000 LBS POSITIONING SPEED 600 IPM PUNCH SIZE 5” MAX IN 10 GA, 1” IN 1/2” PLATE HIT RATE 1” CENTERS 60 SPM HYDRAULIC POWER 10 HP 230/460 VOLT, WIRED 460 EQUIPPED WITH WA WHITNEY PANELGAGE 2E CNC CONTROL, TOUCH SCREEN DUAL GUARDED FOOT SWITCHES LARGE ASSORTMENT OF TOOLING 28XX Extensive tooling approximately 70 rounds from .106'' to 4.3'', approximately 30 oblongs and squares 30 DAY RETURN PRIVILEGE
